HOYT CONCEPT X 40 COMPOUND BOW

The Hoyt Concept X 37 and 40 represent the exceptional engineering archers expect from Hoyt.

With a riser, limb system, and cam system all designed to complement each other, the Concept X gives shooters an extremely stable foundation for seeking out target archery perfection.

Starting with a riser that minimizes rotational translation, adding a limb system that is the most torsionally stable Hoyt have ever designed, and wrapping it up with the SCTR cams – the culmination of two decades of Hoyt Cam & 1/2 and HB cam systems rolled into one.

The Concept X beats the standards you expect from Hoyt.

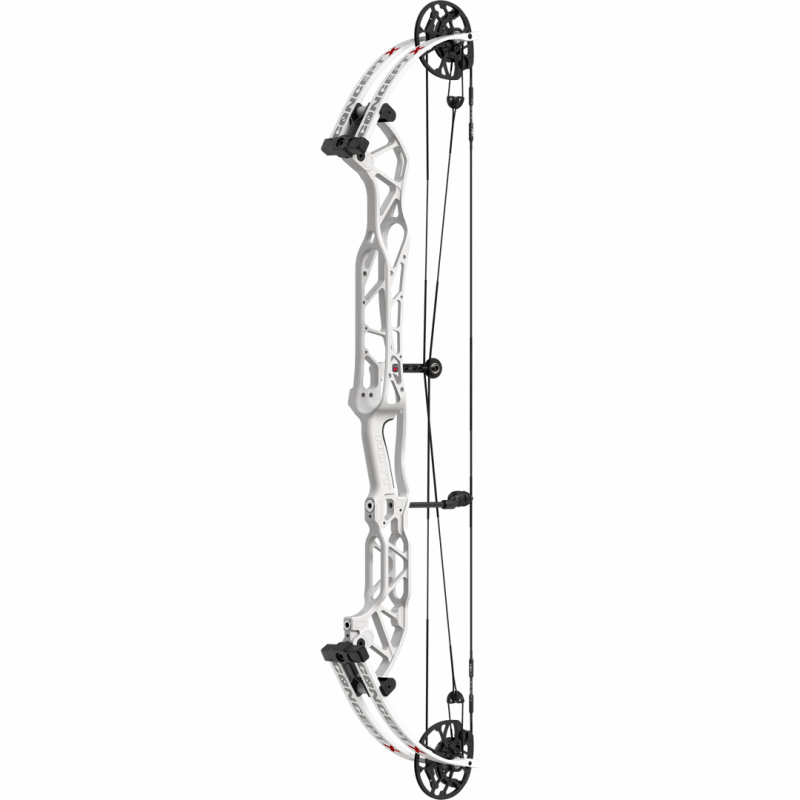

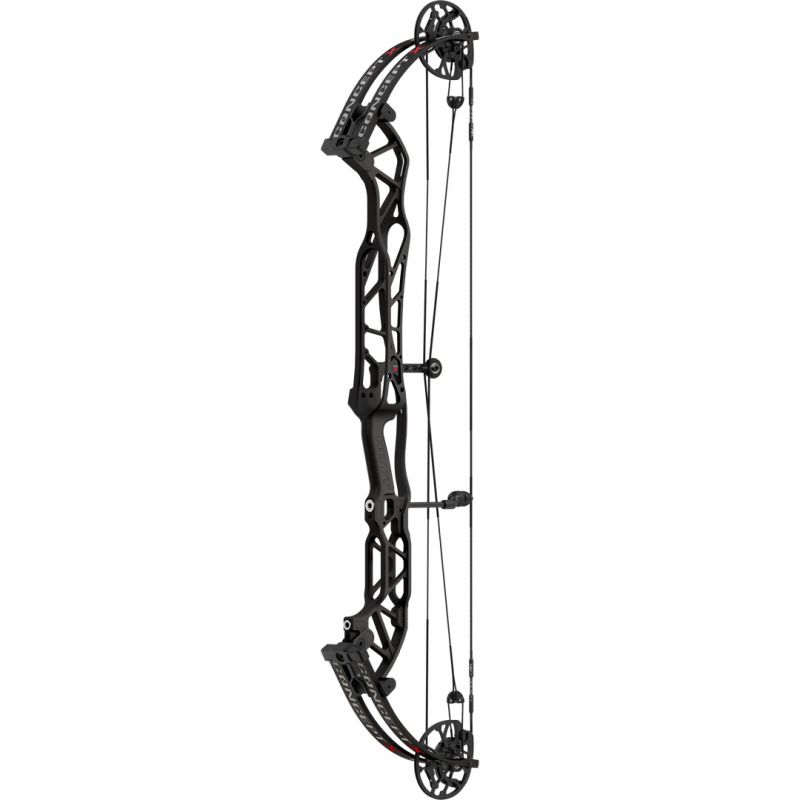

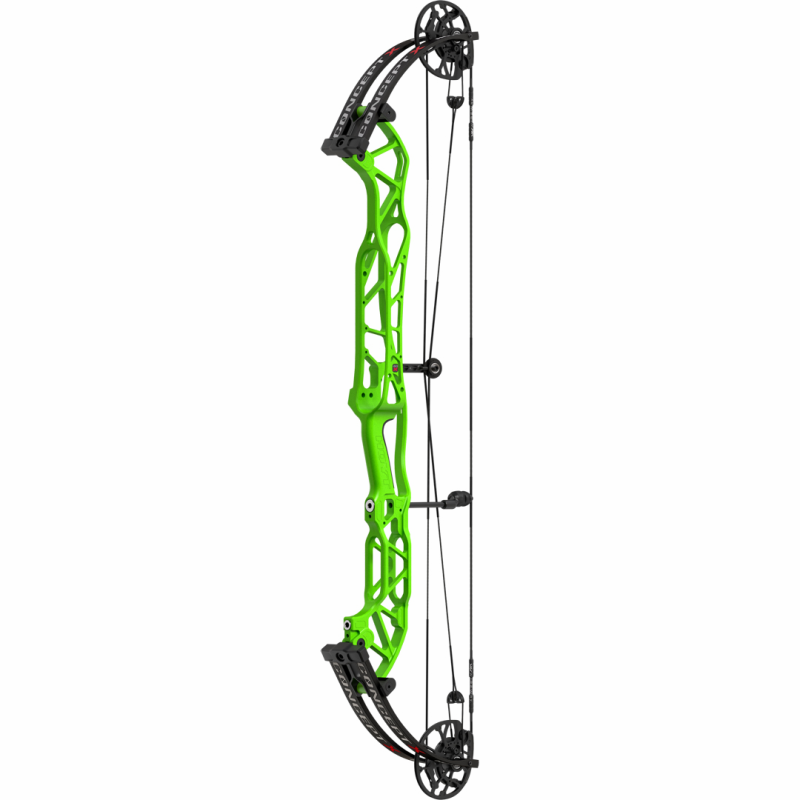

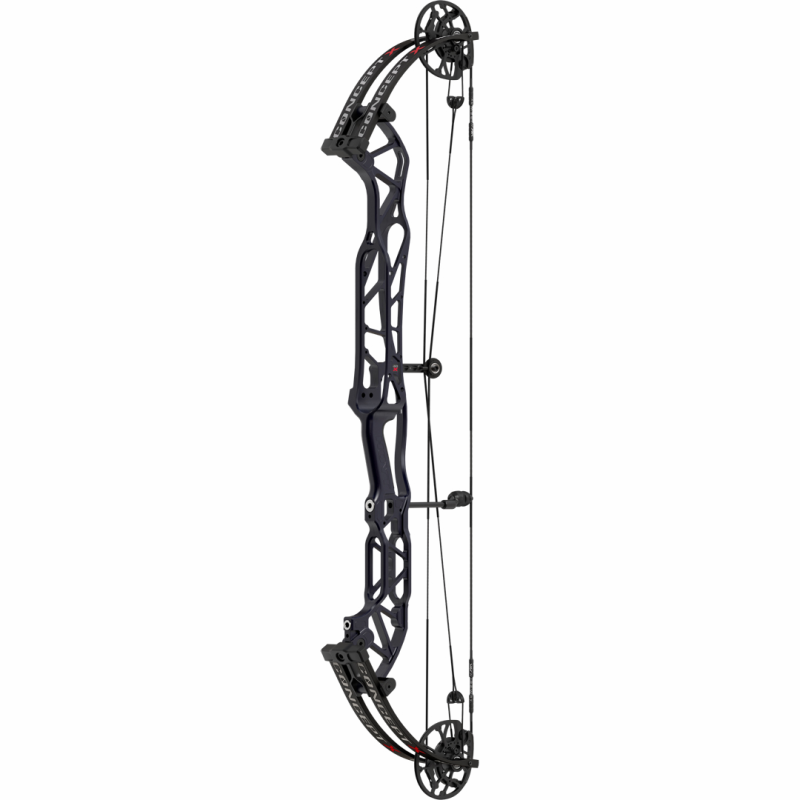

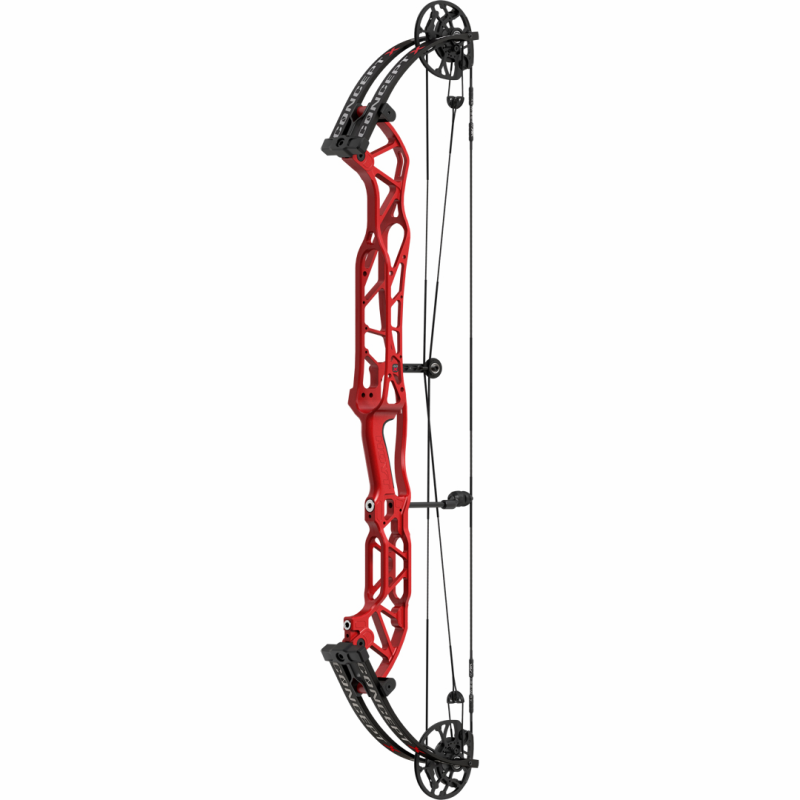

Fresh colors just in.

All the classics and some funky new additions, including color-changing Skeeter and Blue on Black.

Also available in matte powder coat colors: Blackout, Bourbon, Tombstone, and Wilderness.

Limb options include black satin, white gloss, and black gloss. Up-charge may apply for gloss limbs.



What makes Concept X so good:



Hold to a higher standard

Concept X carries the torch with Hoyt’s proven Modular Grip System.

This patented design allows archers to choose between grip plates at 0 (standard), 4 or 8 degree angled grip plates, along with a version of each grip angle in a plate that reduces draw length by 1/8″, allowing the archer to fine tune draw length without changing the tune of the bow.



Feels like a Winner

Hoyt conducted a full-scale study of dynamic bow alignment to improve the natural aim of our latest premier target compound bows.

Testing revealed that Concept X has the lowest rotational translation of every bow included in the test from all major manufacturers.

This gives the shooter a bow that points more naturally at full draw and has less horizontal nock travel when returning to brace.

Concept X aids shooters in maintaining natural bow-to-target alignment without manipulating the grip or creating forces that work against the shooter’s natural aiming pattern throughout the draw cycle and shot.

Addressing how the bow aligns at brace throughout the shot process and how the bow drives the arrow nock through the shot cycle vastly improved tunability across different arrow spines and diameters.

Concept X is also more natural to hold when shooting up and down hills and inherently less critical to negative inputs.

Basically, it’s less stress, more X.



SCTR Cam System

The SCTR Cam system (pronounced “Sector”) combines the best of Hoyt Cam & 1/2 technology with modern Hoyt HB cam systems to deliver a shooting system that enhances the shooter experience in every way.

Borrowing qualities from one of their most winning SVX cam systems, the SCTR cam system takes those qualities and improves performance by delivering fine-tuned “feel” adjustments that shooters can easily perform.

A larger, stronger, more rigid 1/4″ threaded axle system stiffens the overall system, enhances cam bearing life, and works in tandem with TXL limbs to deliver maximum performance and efficiency while also delivering ultimate stability.

It also happens to be quieter and shoots with far less vibration.



TXL Limbs – The Drivetrain of Concept X

The new TXL limb is engineered to work harmoniously with the new SCTR cam system. By developing them as a system, we achieved the most efficient and stable limb we’ve ever built.

• Most torsional stability of any Hoyt target bow limb
• Shortest Hoyt Target Limb
• Length and flex profile optimized for SCTR Cam System
• Improves, efficiency, shot experience and string angle



Concept X Highlights:

•  Longest Hoyt riser ever. Nearly 3 inches longer than Stratos.
• Least rotational translation of any Hoyt target bow. This equals better tuning across arrow spines and diameters, and more forgiveness to the shooter.
• SCTR Cam System Drag Race speeds with the ultimate in full draw adjustability – perfectly dial in draw length, holding weight and valley.
• New CDM Mods Maximum efficiency across a rotating, draw-length adjustable module.
• New SPEC Mods Ultimate in performance with exacting specifications and +/- .25″ draw length adjustments.



	CONCEPT X 40	CONCEPT X 37	CONCEPT FX
FPS (ATA)	327	330	332
AXLE-TO-AXLE	40″	37″	34″
BRACE HEIGHT	7.25″	7″	6.25″
MASS WEIGHT (LBS)	4.9	4.75″	4.45″
DRAW LENGTH (SPEC MOD)	26″ – 32″	25″ – 31″	23.5″ – 29.5″
DRAW LENGTH (CDM MOD)	27″ – 30″	26″ – 29″	24.5″ – 27.5″
